The HP Surestore Disk System 2405 is a high-performance fiber channel storage system that supports the latest 2 Gb fiber channel interconnect, with speeds up to 200 MB/s. It has high performance, reliability, manageability, openness, flexibility, compactness, upgradability, scalability and easy maintenance.
The HP Disk System 2405 is a high‑performance, 3U fiber‑channel storage solution that supports up to 105 disk drives and offers flexible, mixed‑disk configurations. It includes hot‑swap disks, power supplies, fans, and controller cards, and is compatible with multiple operating systems such as HP‑UX, Windows NT, and Windows 2000.

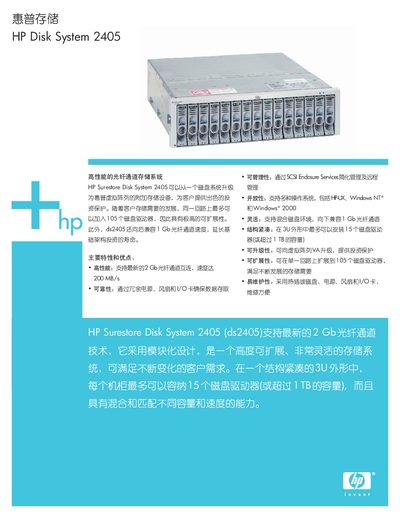

The manual contains technical specifications, part lists, warranty options, and service information, helping users install, configure, and maintain the system while ensuring data protection and scalability. This manual is written in Chinese.
| Performance | 200 MB/s transfer rate |
|---|---|
| Connector Type | Short‑wave multimode fiber with duplex LC connector |
| Dimensions | 5.1 × 176 × 19.9 in (13.0 × 44.8 × 50.5 cm) |
| Weight | 60–80 kg |
| Operating Temperature | 41–100 °F (5–38 °C) |
| Operating Humidity | 10%–80% @ 82 °F (28 °C) (wet‑bulb) |
| Maximum Altitude | up to 10,000 ft (3.048 m) |
| Supported Disk Types | 18 GB 15K rpm, 36 GB 10K rpm, 36 GB 15K rpm, 73 GB 10K rpm FC drives |
| Power Input | 100–240 VAC, 50–60 Hz |
| Power Consumption | 500 W |
The system provides a transfer rate of 200 MB/s.
Up to 105 disk drives can be installed on a single system.
Standard warranty is 2 years on‑site same‑day response, with optional upgrades to 1‑3 years and 24 × 7 support.
