HP StorageWorks msa1000 is an entry-level storage device with a 2 Gb Fibre Channel interface, supports Windows 2000 and NT, NetWare, Linux, or Tru64 UNIX and OpenVMS operating systems.

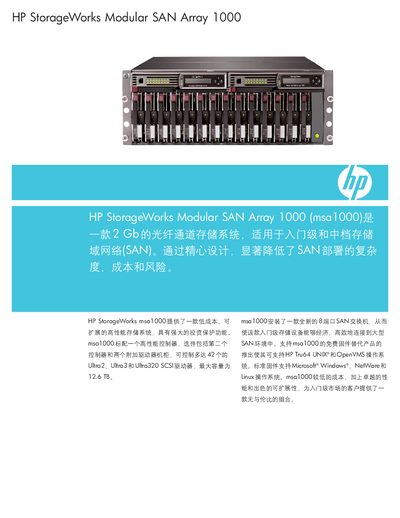

The HP Modular SAN Array 1000 (msa1000) is a 2 Gb optical‑fiber channel storage system designed for high‑performance SAN deployments. It includes an 8‑port SAN switch, supports up to 12.6 TB of storage, and offers extensive compatibility with HP Tru64 UNIX, OpenVMS, Windows, and Linux operating systems.
The manual covers main features, technical specifications, rack‑mount dimensions, power requirements, and a list of accessories. It also provides contact information for support and warranty details. This manual is written in Chinese.
| Maximum capacity | 12.6 TB |
|---|---|
| SAN switch ports | 8 ports |
| Rack size | 4U |
| Dimensions (H×W×D) | 72.4 mm × 376 mm × 84.2 mm (2.85 in × 14.81 in × 33.13 in) |
| Weight | 34.0–47.6 kg (75–105 lb) |
| Power input voltage | 100–240 V AC |
| Power consumption (max) | 549 W |
| Operating temperature | -30 °C to 50 °C |
The system can be expanded up to 12.6 TB of storage.
It includes an 8‑port SAN switch.
The device operates from –30 °C to 50 °C.
It accepts 100 V to 240 V AC.
