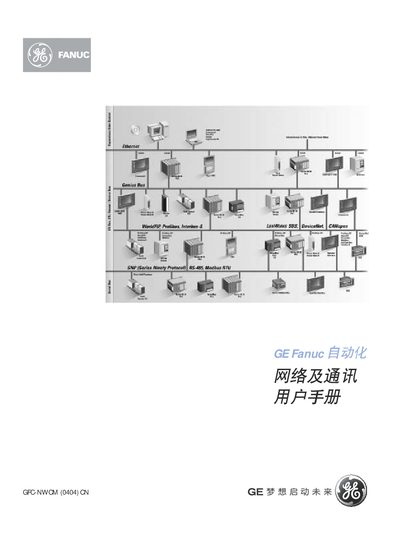

This document is the GE Fanuc Automation Network and Communication User Manual, which introduces GE Fanuc Industrial Ethernet, Genius Network, Profibus-DP Network, DeviceNet Network Communication, Modbus Communication Protocol, and selection guide.
This manual provides detailed information on the various industrial communication networks supported by GE Fanuc controllers, including Ethernet, Genius Bus, Profibus‑DP, DeviceNet, and Modbus (both TCP/IP and RTU). It describes the hardware components such as RJ45 connectors, switches, routers, and the configuration of Ethernet Global Data (EGD) and Service Request Transport Protocol (SRTP).
The document also covers PLC hardware specifications, including CPU speeds, module part numbers, and network interface settings for Series 90, PACSystems RX7i, Versamax, and related devices. Fault tables, data watch lists, and hardware slot configurations are included to aid troubleshooting and system integration. This manual is written in Chinese.
| Ethernet speed | 10/100Mbps |
|---|---|
| PAC70 CPU speed (IC698CPE010) | 300MHz |
| PAC70 CPU speed (IC698CPE020) | 700MHz |
| LAN standard | IEEE 802.3 CSMA/CD 10/100 Mbps |
| Supported PLC series | Series 90‑70, Series 90‑30, PACSystems RX7i, Versamax |
The devices support 10 Mbps and 100 Mbps Ethernet speeds.
The manual covers Series 90‑70, Series 90‑30, PACSystems RX7i, and Versamax PLC families.
Ethernet, Genius Bus, Profibus‑DP, DeviceNet, and Modbus (both TCP/IP and RTU) are described.
