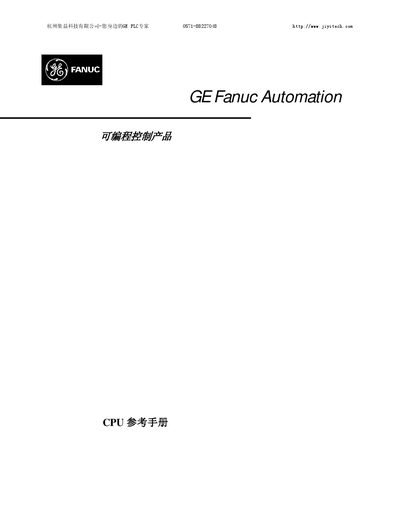

GE Fanuc CPU Reference Manual

About this manual

This reference manual describes the features, configuration options, and operation of GE Fanuc automation CPUs. It includes safety warnings, firmware details, Ethernet and RS‑232 port settings, and information on scanning modes and service request functions.

The document also covers data types, conversion utilities, and how to generate and interpret conversion reports after migrating legacy logic to PACSystems CPUs. It provides guidance for testing Ethernet connectivity, using ping commands, and managing CPU start‑stop modes. This manual is written in Chinese.

What's inside

• Safety Warnings and Notices
• CPU Features and Specifications
• CPU Configuration and Firmware
• Ethernet and RS‑232 Port Settings
• Scanning Modes and Operation
• Service Request Functions
• Data Types and Conversion Functions
• Conversion Report Generation
