The MIC400 infrared PTZ camera is a specially designed camera by Bosch, which aims to provide extremely reliable, powerful and high-quality monitoring solutions, suitable for security applications that require extremely high performance in both day and night.
The MIC400 is a Bosch‑designed infrared PTZ camera built for reliable, high‑performance surveillance in both day and night conditions. It features dual 850 nm IR LEDs, brushless motor technology, an integrated wiper, and IP68‑rated housing for harsh environments.

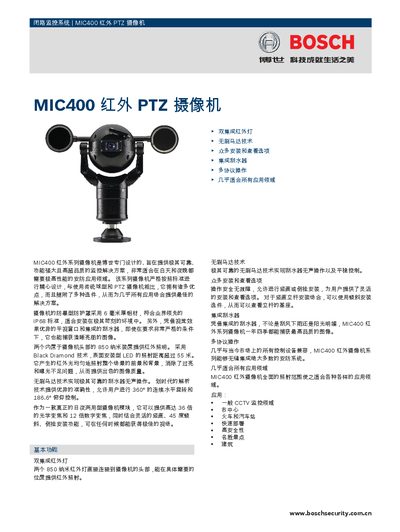

This manual covers basic features, certification details, installation and configuration options, technical specifications, housing dimensions, ordering information, and contact details for Bosch Security. It also includes guidance on preset positions, privacy masking, and supported communication protocols. This manual is written in Chinese.
| Image sensor | 1/4 inch Exview CCD |
|---|---|
| Optical zoom | 18× (or 36× optional) |
| Infrared illumination distance | 55 m |
| Weather protection | IP68 |
| Horizontal rotation | 360° continuous |
The infrared LEDs can illuminate up to 55 meters.
The camera offers an 18× optical zoom module, with a 36× option also listed.
