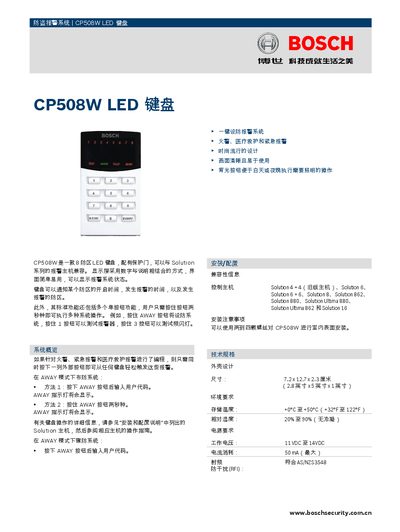

The CP508W LED keypad is an 8-zone LED keypad with a protective door that is compatible with the Solution series of alarm panels.
The CP508W LED Keyboard is an 8‑zone LED keypad with a protective door, designed for use with Bosch Solution alarm panels. It displays system status and can notify users of zone activation times and alarm events. The device features back‑lit buttons for easy operation day or night.
The manual covers system overview, installation and configuration steps, compatibility with various Solution panels, technical specifications, and ordering information. It also includes wiring guidance, AWAY mode arming procedures, and contact details for Bosch security support in China and Hong Kong. This manual is written in Chinese.
| Dimensions | 7.2 x 12.7 x 2.3 cm |
|---|---|
| Operating Temperature | +0°C to +50°C |
| Relative Humidity | 20% to 90% |
| Operating Voltage | 11–14 VDC |
| Current Consumption | 50 mA max |
| RF Compliance | AS/NZS3548 |
It can display and control eight zones.
The keyboard operates on 11 to 14 VDC.
