The MHW-SM4M1 management server is suitable for applications that require strict availability, redundancy, and high performance in closed-circuit surveillance systems. It features a dual-core Intel Xeon processor and offers excellent system availability and scalability.

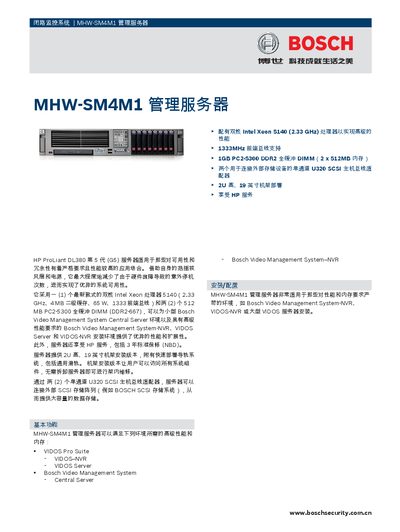

This manual describes the Bosch MHW‑SM4M1 management server, a 2U rack‑mountable system designed for high‑availability video management applications. It lists the supported HP ProLiant DL380 G5 hardware, dual‑core Intel Xeon 5140 processor, and 1 GB DDR2 memory configuration.
The document includes basic functions, installation and configuration procedures, accessory lists, technical specifications, environmental limits, and model variants for different regions (DE, UK, US). Contact information for Bosch security offices in China and Hong Kong is also provided. This manual is written in Chinese.
| Processor | Dual‑core Intel Xeon 5140 (2.33 GHz) |
|---|---|
| Memory | 1 GB DDR2 (2 × 512 MB) PC2‑5300 DIMM |
| Rack Size | 2U high, 19‑inch rack mount |
| Dimensions | 8.59 × 44.54 × 66.07 cm (3.38 × 17.54 × 26.01 in) |
| Input Voltage | 100‑132 VAC, 200‑240 VAC |
| Input Current | 10 A (100 VAC), 10 A (120 VAC), 6.1 A (200 VAC) |
| Operating Temperature | 10 °C to 35 °C (50 °F to 95 °F) |
| Storage Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Operating Humidity | 10 % to 90 % RH |
| Storage Humidity | 5 % to 95 % RH |
It uses a dual‑core Intel Xeon 5140 processor running at 2.33 GHz.
The server is equipped with 1 GB of DDR2 memory (2 × 512 MB PC2‑5300 DIMMs).
It is a 2U high, 19‑inch rack‑mountable unit.
The server operates between 10 °C and 35 °C (50 °F to 95 °F).
