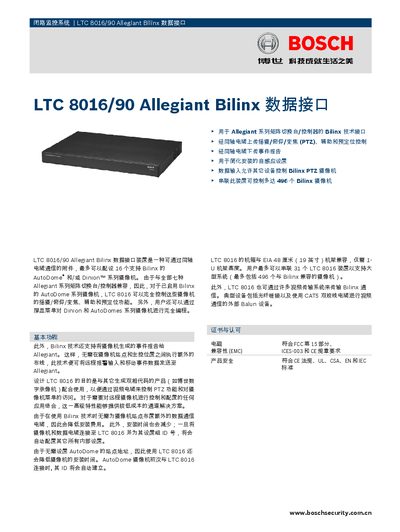

The LTC 8016/90 Allegiant Bilinx Data Interface is an add-on that communicates over coaxial cable and can support up to 16 Bilinx-enabled AutoDome® and/or Dinion™ cameras. The device is compatible with all seven Allegiant Series matrix switchers/controllers and provides full control of AutoDome series cameras' pan/tilt/zoom, assist, and preset functions. Users can also fully program Dinion and AutoDomes series cameras through an on-screen menu. The device also supports sending camera-generated event reports to Allegiant.
The LTC 8016/90 Allegiant Bilinx Data Interface is a rack‑mountable device that enables PTZ, auxiliary and preset control of up to 16 Bilinx‑compatible AutoDome or Dinion cameras per unit, and can be cascaded to manage up to 496 cameras. It communicates over coaxial cable and supports event reporting to Allegiant matrix switchers, simplifying installation and reducing wiring costs.
Technical specifications include a wide voltage range (108‑264 VAC, 50/60 Hz), 15 W power consumption, and video signal distances of up to 300 m on RG‑59U coaxial cable (600 m on RG‑11/RG‑6 or fiber modules). The unit fits a 1‑U, 19‑inch rack, weighs 3.8 kg, and operates from 0 °C to 50 °C. This manual is written in Chinese.
| Voltage range | 108‑264 VAC, 50/60 Hz |
|---|---|
| Power consumption | 15 W |
| Maximum video distance (RG‑11 / RG‑6 coaxial) | 600 m (2000 ft) |
| Maximum video distance (fiber) | 600 m (2000 ft) |
| Supported cameras per unit | 16 |
| Maximum cameras when cascaded | 496 |
| Rack size | 1‑U, 19‑inch (EIA‑48 cm) |
| Operating temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Weight | 3.8 kg (8.5 lb) |
