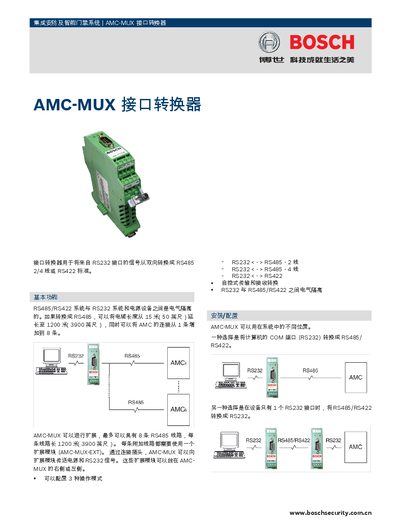

The AMC-MUX interface converter is used to convert signals from an RS232 interface in both directions to the RS485 2/4 wire or RS422 standard. It can extend cable lengths from 15 m (50 ft) to 1200 m (3900 ft) and increase AMC connections from 1 to 8.
The AMC-MUX Interface Converter converts RS232 signals to RS485 or RS422 and can also convert RS485/RS422 back to RS232. It supports up to eight RS485/RS422 channels, each with a maximum cable length of 1200 m (3900 ft), and can extend a single RS232 line to multiple RS485 lines.
Installation and configuration are described, including wiring diagrams and the use of optional extension modules (AMC-MUX-EXT). The device operates from 8 V to 30 V DC, draws up to 530 mA, and its physical dimensions are 99 × 115.2 × 22.6 mm. Technical specifications such as supported baud rates (9.6 kbit/s and 19.2 kbit/s) and connector types are also listed. This manual is written in Chinese.
| Input voltage | 8 V to 30 V DC |
|---|---|
| Maximum current | 530 mA |
| Supported baud rates | 9.6 kbit/s and 19.2 kbit/s |
| RS232 max cable length | 50 ft (15 m) |
| RS485/RS422 max cable length per channel | 3900 ft (1200 m) |
| Number of RS485/RS422 channels | 8 |
| Dimensions | 99 × 115.2 × 22.6 mm |
The device can support up to 8 RS485/RS422 channels, each with a maximum cable length of 1200 m (3900 ft).
It operates from 8 V to 30 V DC and draws a maximum of 530 mA.
