The ARD-AYK12 is a RFID reader with a Wiegand output for 125 kHz EM card technology. It features a buzzer and a multicolor LED display, and can be installed both indoors and outdoors.
The ARD-AYK12 is a 125 kHz RFID reader that outputs Wiegand data. It complies with UL 294, FCC Part 15B and CE, making it suitable for both indoor and outdoor security installations. The device includes a 18‑inch cable and multi‑color LED indicators for status monitoring.

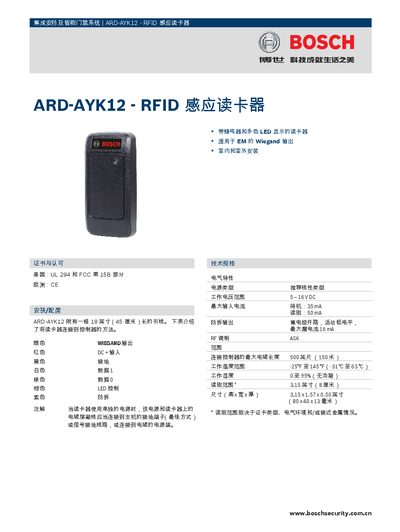

The guide provides wiring details (red = DC+, black = ground, white = Data 1, gray = Data 0, purple = anti‑tamper), installation steps, and key technical specifications such as a 5‑16 VDC supply, 35 mA standby current, 50 mA active current, 500 ft read range, and operating temperature from –25 °F to 145 °F. This manual is written in Chinese.
| Supply voltage | 5‑16 VDC |
|---|---|
| Standby current | 35 mA |
| Active current | 50 mA |
| Maximum leakage current | 16 mA |
| Operating temperature | -25 °F to 145 °F (-31 °C to 63 °C) |
| Operating humidity | 0 % to 95 % (non‑condensing) |
| Dimensions (L×W×H) | 3.15 × 1.57 × 0.50 in (80 × 40 × 13 mm) |
| Read distance | 500 ft (150 m) |
| Certifications | UL 294, FCC Part 15B, CE |
The reader operates from 5 VDC to 16 VDC.
It can read tags up to 500 feet (150 meters) away.
Red is DC+, black is ground, white is Data 1, gray is Data 0, purple is anti‑tamper, and the LED control has its own color.
It is certified to UL 294, FCC Part 15B, and CE.
