ARD-AYCE65B is a super-slim, embedded-mount design RFID proximity reader with a keypad for password input, a buzzer and a multi-color LED display. It also features programmable transmission formats and codes, Wiegand output for EM, and is all-weather with a vandal-resistant housing.
The ARD-AYCE65B is a thin‑profile RFID reader from Bosch Security, operating at 125 kHz with a Wiegand interface. It is certified UL 294, FCC Part 15B, CE and has an IP68 rating, making it suitable for harsh, all‑weather installations.

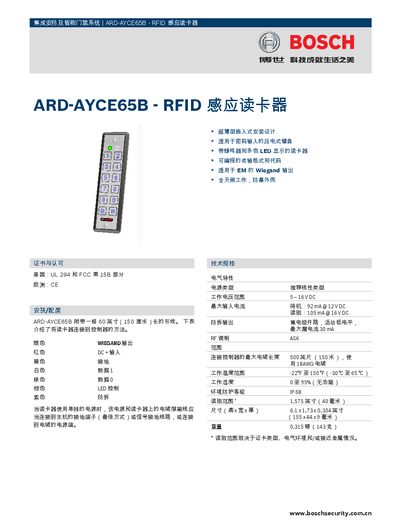

The manual provides detailed wiring colors, power requirements (5‑16 VDC, standby 92 mA @12 VDC, active 105 mA @16 VDC), maximum cable length (500 ft using 18 AWG), environmental limits, physical dimensions, and other technical data needed for proper installation and configuration. This manual is written in Chinese.
| Operating voltage | 5‑16 VDC |
|---|---|
| Standby current | 92 mA @12 VDC |
| Operating current | 105 mA @16 VDC |
| Maximum leakage current | 30 mA |
| Operating temperature range | -22 °C to 150 °C |
| Operating humidity range | 0 % to 95 % RH |
| Dimensions (H × W × D) | 6.1 × 1.73 × 0.354 in (155 × 44 × 9 mm) |
| Weight | 0.315 kg (143 g) |
| Wiegand pin colors | Red = DC+, Black = Ground, White = Data1, ... |
It operates from 5 V to 16 V DC.
Red is DC+, Black is Ground, White is Data1, and the other pins follow the color code shown in the manual.
