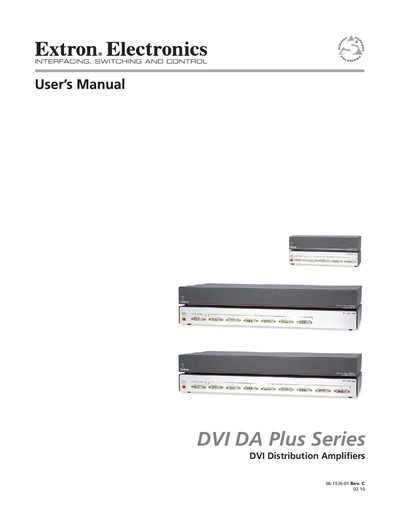

This document is the safety instructions for 68-1536-01 Rev. C 02 10 DVI DA Plus Series DVI Distribution Amplifiers, which mainly introduces the safety precautions for using the product, including power supply, operation instructions storage, warning signs and so on.
This manual begins with safety and handling instructions, emphasizing the need to read all warnings, use a grounded power source, keep ventilation openings clear, and avoid any self‑service. It also outlines the required power connections and cautions about battery replacement.
The document then covers installation, front‑panel operation, EDID Minder functionality, technical specifications, and various mounting methods (rack, under‑desk, tabletop). Appendices list part numbers, accessories, and warranty information.
| Maximum data rate | 4.95 Gbps (1.65 Gbps per color) |
|---|---|
| Maximum pixel clock | 165 MHz |
| Resolution range | Up to 1920x1200 or 1080p @ 60 Hz |
| Power input | 12 VDC |
| Power consumption (DA4 Plus) | 1.0 A (max.) |
| Power consumption (DA6/DA8 Plus) | 1.5 A (max.) |
| Enclosure dimensions (DA4 Plus) | 1.75" H × 8.75" W × 3.0" D |
| Enclosure dimensions (DA6/DA8 Plus) | 1.75" H × 17.5" W × 8.5" D |
| Operating temperature | +32 to +122 °F (0 to +50 °C) |
The DVI DA4 Plus provides four single‑link DVI‑D outputs, the DA6 Plus provides six, and the DA8 Plus provides eight.
The amplifiers require an external 12 VDC power supply; the DA4 Plus draws up to 1.0 A, while the DA6 Plus and DA8 Plus draw up to 1.5 A.
All three units can be mounted in a rack, under a desk, or placed on a tabletop, with optional rack‑mount or under‑desk kits.
