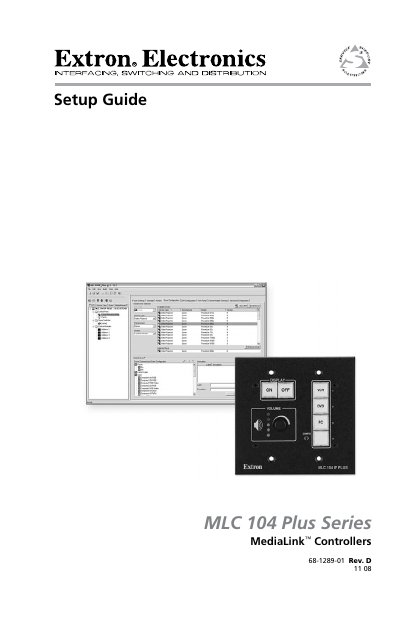

This document is a setup guide for the MLC 104 Plus Series MediaLink™ Controllers with the part number 68-1289-01 Rev. D 11 08. The document provides operating and maintenance instructions, as well as warnings about the presence of dangerous voltage within the product. It emphasizes the importance of reading and understanding all safety and operating instructions, retaining the instructions for future reference, following all warnings and instructions marked on the equipment, and avoiding the use of unauthorized tools or attachments. It also provides precautions related to power sources, power disconnection, and power cord protection.
The Extron MLC 104 Plus Series MediaLink Controller is a compact control panel for small classrooms and meeting rooms. It provides standardized display power, input switching, and volume control, and can be mounted on a lectern, desk, wall, rack, or wall box.
This setup guide walks users through safety precautions, hardware connections, LAN setup for IP models, and software configuration with Global Configurator, including launching the GlobalViewer interface for network‑based monitoring and control.
Read and understand all safety and operating instructions, keep the safety instructions for future reference, use only the recommended tools and power source, and ensure the equipment is grounded before connecting power.
