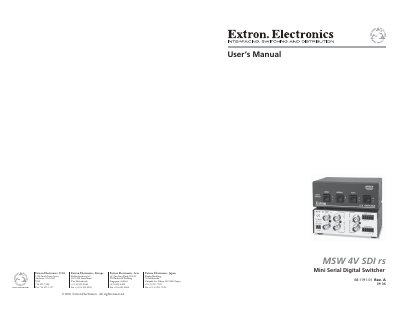

This is a user manual that introduces the features and characteristics of Extron Mini Serial Digital Switcher 68-1191-01 Rev. A 09 06 MSW 4V SDI rs
This manual describes the Extron MSW 4V SDI rs mini serial digital switcher, a four‑input, two‑output SDI distribution device. It covers safety warnings, power requirements, mounting options, and basic operation of the switcher.
Key sections include a Quick Start Guide, detailed installation and rack‑mounting instructions, front‑panel controls, RS‑232 serial communication, and an appendix with specifications, part numbers, and warranty information.
| Power Supply | 12 V DC, 0.5 A max |
|---|---|
| Video Inputs | Four female BNC connectors |
| Video Outputs | Two parallel BNC outputs |
| Serial Control | RS‑232 port |
It requires a 12 V DC power supply with a maximum current of 0.5 A.
The switcher supports four SDI video inputs.
Yes, it can be controlled via the RS‑232 port using Extron’s Simple Instruction Set.
