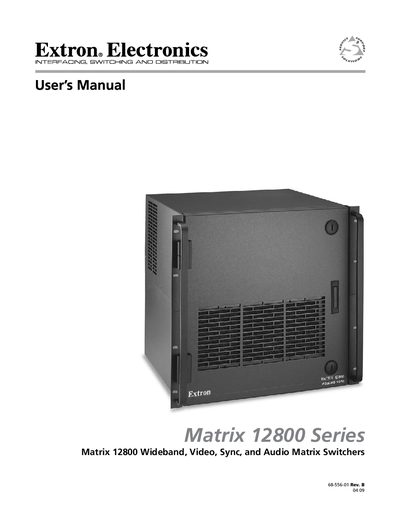

The Matrix 12800 Series is a wideband, video, sync, and audio matrix switcher. The equipment includes important operating and maintenance instructions and a warning about the risk of electric shock.
This manual covers safety precautions, power handling, and hardware installation for the Extron Matrix 12800 series switcher. It includes detailed wiring diagrams, rack‑mounting instructions, and guidance on grounding and battery replacement.
The document also describes the software side of the product, including virtualization/control software setup, Ethernet configuration, programming, and maintenance procedures such as fan and power‑supply replacement.
| Supported signal types | Wideband video, low‑resolution video, sync, audio |
|---|---|
| Battery type | Lithium battery (replace only with same or equivalent type) |
The manual uses symbols to highlight important operating and maintenance instructions and to warn of uninsulated dangerous voltage inside the enclosure.
Remove all power cords from the rear of the equipment or from the wall outlet before performing any service.
No. All servicing must be performed by qualified service personnel; there are no user‑serviceable parts.
Replace it only with the same or an equivalent lithium battery type recommended by the manufacturer and follow the disposal instructions.
