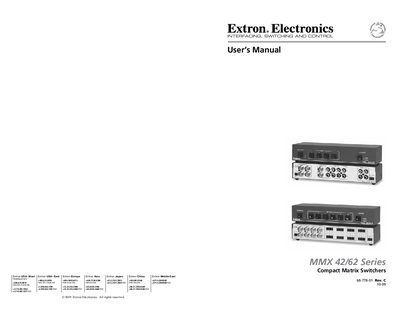

This document is the user manual for the Extron Electronics MMX 42/62 Series Compact Matrix Switchers. The manual includes safety instructions, operating guidelines, and contact information for the product.
This manual introduces the Extron MMX42/62 series of compact matrix switchers, describing the four‑input/2‑output (MMX42) and six‑input/2‑output (MMX62) video and audio models, their video standards compatibility, and front‑panel and RS‑232 remote control features. It also outlines the optional mounting options and accessories that accompany the units.
Installation guidance covers safety precautions, power connection, mounting (tabletop, rack, under‑desk), cable routing, and environmental requirements such as ambient temperature limits and airflow. The document includes detailed specifications, part numbers, and warranty information for service and support.
| Bandwidth | 150 MHz (-3 dB) |
|---|---|
| Audio gain/attenuation range | -18 dB to +24 dB |
