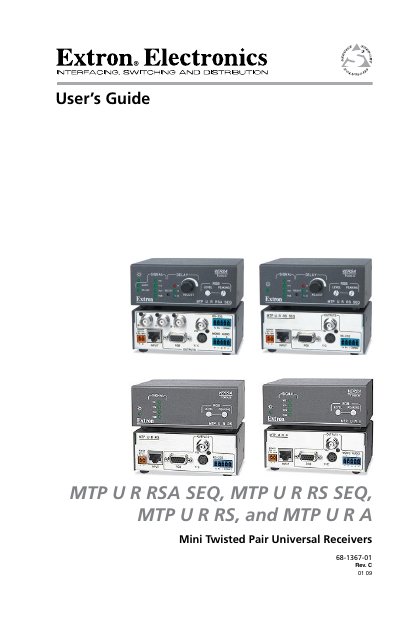

This user guide explains safe handling and operation of Extron's MTP U R mini twisted‑pair universal receivers. It covers important safety warnings, power‑source requirements, and battery handling to prevent electric shock or equipment damage.
The manual details installation procedures, cable selection, rack or projector mounting, jumper configuration for RS‑232 and sync polarity, power‑supply wiring, front‑panel controls, and performance specifications such as video gain, supported video formats, and transmission distances.
| Video input type | 1 set of proprietary analog signals |
|---|---|
| Video output types | RGBHV, RGBS, component video (bi‑level and tri‑level), S‑video, composite video |
| Input connector | 1 female RJ‑45 |
With Pre‑Peak off the recommended maximum distance is 250 ft (75 m); with Pre‑Peak on it is 300 ft (90 m).
