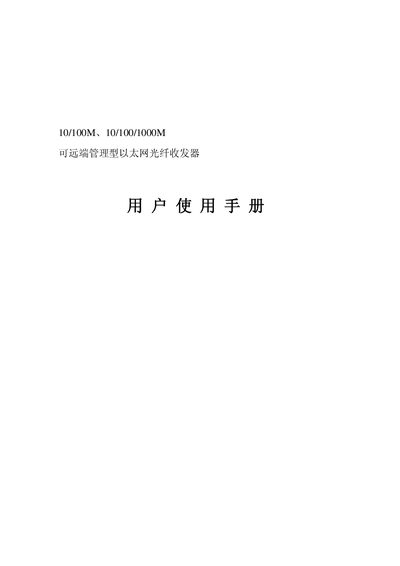

User manual for a remote‑managed 10/100/1000 Mbps Ethernet fiber optic transceiver covering installation, configuration, and troubleshooting.
The manual describes a high‑reliability, low‑cost Ethernet fiber transceiver that converts between copper and optical ports for 10 Mbps, 100 Mbps and 1000 Mbps speeds. It supports both single‑mode and multimode fiber, SFP modules, and offers multiple management interfaces including SNMP, WEB, CONSOLE and TELNET.
Hardware sections cover the management card, cascade card, and various transceiver cards, detailing panel layouts, LED indicators, switch settings, and connection cables. Software sections explain the use of management software, FTP upgrade, and console commands, while the troubleshooting chapter provides common fault symptoms and corrective actions. This manual is written in Chinese.
| Supported Ethernet speeds | 10/100/1000 Mbps |
|---|---|
| Physical Ethernet interface | RJ45 |
| Supported optical interfaces | ST, SC, FC, LC |
| Supported wavelengths | 850 nm, 1310 nm, 1550 nm |
| Maximum copper transmission distance | 100 m |
| Operating temperature range | 0 °C – 50 °C |
| Power supply | 85 VAC – 265 VAC, -40 VDC – -57 VDC |
| Rack dimensions | 315 mm × 425 mm × 92 mm (H) |
