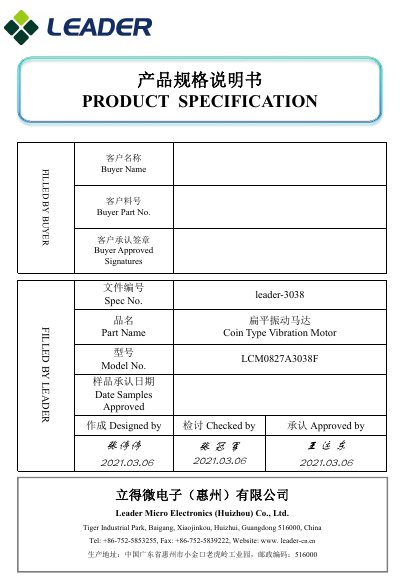

Specification sheet for the LCM0827A3038F coin‑type vibration motor detailing electrical, mechanical and reliability data.
The document provides the full technical specification for the LCM0827A3038F coin‑type vibration motor manufactured by Leader Micro Electronics. It includes operating conditions, test methods, initial electrical characteristics, mechanical performance, reliability criteria, and packaging requirements.
Key sections cover voltage and current limits, speed, environmental ranges, mechanical noise, vibration testing, and compliance with RoHS directives. The sheet also lists standard measuring methods and cautions for proper use and storage. This manual is written in Chinese.
| Rated voltage | 3.0V DC |
|---|---|
| Operating voltage range | 2.7~3.3V DC |
| Rated speed | 9,000 rpm |
| Rated current | 80 mA Max |
| Starting current | 120 mA Max |
| Starting voltage | 2.3V DC Max |
| Insulation resistance | 10MΩ Min |
| Bracket deflection strength | ≥9.8N |
| Mechanical noise | ≤50dB(A) |
| Operating temperature range | -20~+60°C |
| Storage temperature range | -30~+70°C |
The rated voltage is 3.0 V DC.
The motor operates between 2.7 V and 3.3 V DC.
The maximum starting voltage is 2.3 V DC.
The motor can operate from –20 °C to +60 °C with 10 %–90 % relative humidity.
