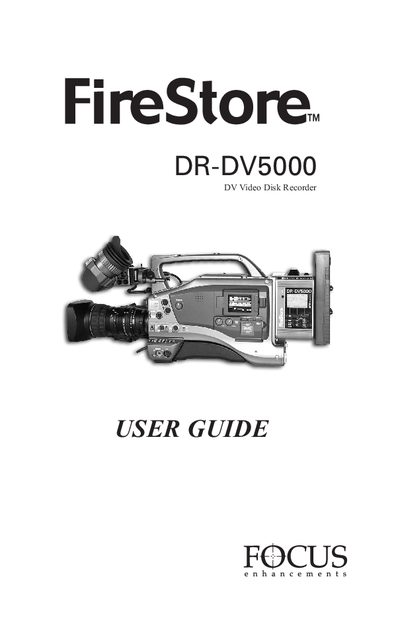

The FireStore DR‑DV5000 user guide provides safety instructions, setup, operation, and maintenance for the DV video disk recorder.
This guide begins with safety warnings, FCC compliance information, and warranty details, followed by a list of package contents and an introduction to the DTE DV Disk Recorder concept. It explains how the unit mounts to JVC camcorders, connects to FireWire drives, and outlines basic applications such as live recording, edit‑ready formats, and remote control.
Later sections describe the front and rear panels, menu navigation, utility functions, and technical specifications including video I/O, power requirements, dimensions, and supported file formats. The manual also includes troubleshooting tips, servicing instructions, and contact information for warranty service.
| DV Video I/O | 25 Mb/s (1 × 6‑pin IEEE‑1394a) |
|---|---|
| External HDD I/O | up to 400 Mb/s (1 × 6‑pin IEEE‑1394a) |
| Power Input | 10 V to 17 V, 7.5 W |
| Weight | 2.5 lb (1.1 kg) with disk drive |
| Dimensions | 4 1/8" × 3 1/2" × 6 1/4" (105 mm × 89 mm × 159 mm) |
Do not use a polarized plug with an extension cord unless the blades can be fully inserted, and follow all safety warnings.
