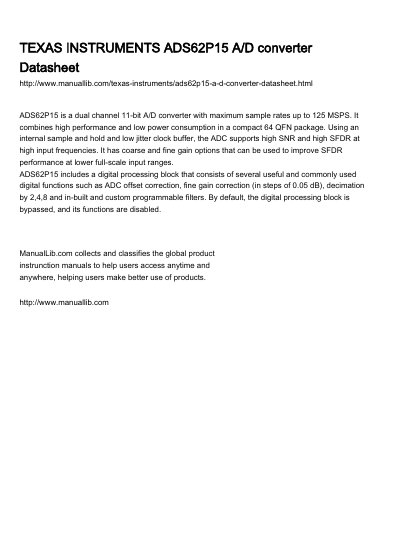

ADS62P15 is a dual channel 11-bit A/D converter with maximum sample rates up to 125 MSPS. It combines high performance and low power consumption in a compact 64 QFN package. Using an internal sample and hold and low jitter clock buffer, the ADC supports high SNR and high SFDR at high input frequencies. It has coarse and fine gain options that can be used to improve SFDR performance at lower full-scale input ranges. ADS62P15 includes a digital processing block that consists of several useful and
The ADS62P15 is a high-performance analog-to-digital converter designed for wireless communications, software-defined radio, and medical imaging applications. It features dual channels with an internal sample-and-hold circuit and low jitter clock buffer to support high SNR and SFDR at input frequencies up to 50 MHz.
The device includes a digital processing block capable of offset correction, fine gain correction in steps of 0.05 dB, decimation by factors of 2, 4, or 8, and programmable filters. It is available in a compact 64-pin QFN package with industrial temperature range operation from -40°C to +85°C.
| Resolution | 11 bits |
|---|---|
| Maximum Sample Rate | 125 MSPS |
| SFDR at 50 MHz | 84 dBc |
| SNR at 50 MHz | 67.1 dBFS |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | 64 QFN |
The device offers Parallel CMOS and DDR LVDS (Double Data Rate) output options.
Yes, it includes internal references, though it can also be driven with an external reference.
Functions include offset correction, fine gain correction (0.05 dB steps), decimation by 2/4/8, and programmable filters.
