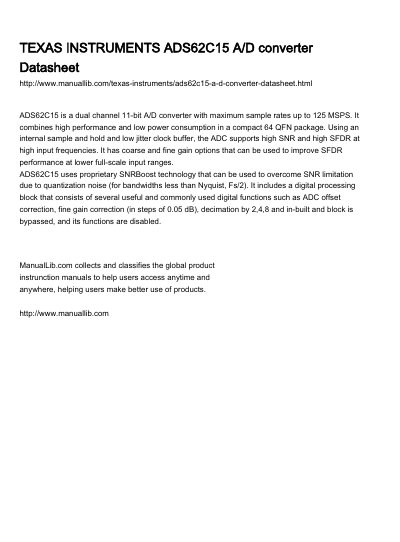

ADS62C15 is a dual channel 11-bit A/D converter with maximum sample rates up to 125 MSPS. It combines high performance and low power consumption in a compact 64 QFN package. Using an internal sample and hold and low jitter clock buffer, the ADC supports high SNR and high SFDR at high input frequencies. It has coarse and fine gain options that can be used to improve SFDR performance at lower full-scale input ranges. ADS62C15 uses proprietary SNRBoost technology that can be used to overcome SNR l
The ADS62C15 is a high-performance analog-to-digital converter designed for wireless communications, software-defined radio, and test instrumentation. It features an internal sample-and-hold circuit and low jitter clock buffer to support high SNR and SFDR at input frequencies up to 117 MHz.
The device offers two output interface options: parallel CMOS and DDR LVDS. It includes proprietary SNRBoost technology to overcome quantization noise limitations and a digital processing block for offset correction, fine gain adjustment, and decimation.
| Resolution | 11 bits |
|---|---|
| Maximum Sample Rate | 125 MSPS |
| Analog Supply Voltage Range | 3 V to 3.6 V |
| Operating Temperature Range | -40°C to 85°C |
| Package Type | 64-QFN (9mm x 9mm) |
The device supports parallel CMOS and DDR LVDS (Double Data Rate) output options.
Yes, it includes internal references while traditional reference pins have been eliminated.
The differential input voltage range is 2 Vpp.
