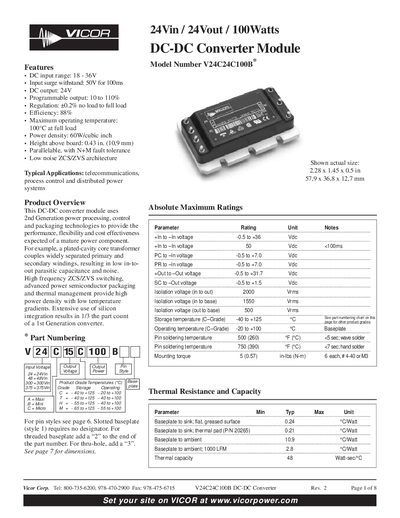

VICOR V23C23C100B DC-DC Converter Module
This document provides technical specifications and electrical characteristics for the Vicor V24C24C100B DC-DC Converter Module. The device utilizes 2nd Generation power processing, control, and packaging technologies to deliver a 24V output with 100W of power density.
Key features include an input voltage range of 18 to 36V, programmable output from 10% to 110%, and high efficiency up to 88%. The module supports parallel operation with N+M fault tolerance and operates within a temperature range of -20°C to +100°C.
VICOR V24C24C100B specifications
| Input voltage range | 18 to 36 Vdc |
|---|---|
| Output voltage | 24V |
| Maximum power | 100 Watts |
| Efficiency | 88% |
| Operating temperature range (C-Grade) | -20 to +100 °C |
| Isolation voltage (in to out) | 2000 Vrms |
All VICOR V24C24C100B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the programmable output range?
The output can be programmed from 10% to 110% of the nominal voltage.
Is parallel operation supported?
Yes, the module is parallelable with N+M fault tolerance.
What is the input surge withstand capability?
The module can withstand an input surge of 50V for less than 100ms.
From: VICOR 24Vin 24Vout 100Watts DC-DC Converter Module Model Number V24C24C100B
Is the output voltage programmable?
Yes, the output is programmable from 10% to 110% of the nominal voltage.
From: VICOR 24Vin 24Vout 100Watts DC-DC Converter Module Model Number V24C24C100B
