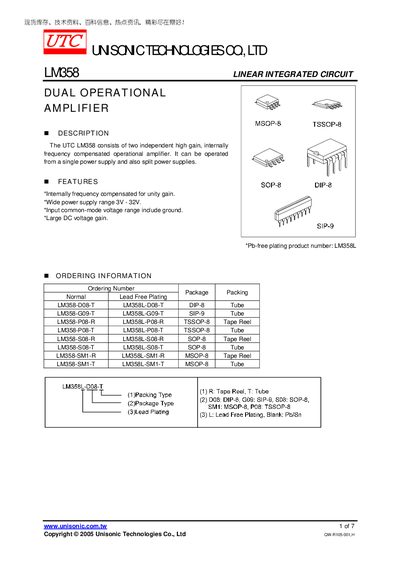

Unisonic LM358 Dual Operational Amplifier Datasheet
The LM358 is a dual, high‑gain, internally frequency‑compensated operational amplifier that can operate from a single or split power supply. It offers a wide supply voltage range, ground‑referenced input common‑mode range, and large DC voltage gain.
The device is offered in multiple packages (DIP‑8, SIP‑9, SOP‑8, MSOP‑8, TSSOP‑8) with lead‑free plating options. Absolute maximum ratings include up to 32 V supply, operating temperature from 0 °C to 70 °C, and a junction temperature limit of 125 °C. Detailed electrical characteristics such as input offset voltage, bias currents, and output drive capabilities are listed.
UTC LM358 specifications
| Supply voltage range | 3 V – 32 V |
|---|---|
| Input common‑mode voltage range | Includes ground |
| Large DC voltage gain | High |
| Maximum supply voltage (absolute rating) | +16 V or +32 V |
| Operating temperature range | 0 °C to 70 °C |
| Junction temperature limit | +125 °C |
| Output short‑circuit current (SIP‑9) | 600 mA |
| Output short‑circuit current (DIP‑8) | 500 mA |
All UTC LM358 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the LM358?
The LM358 operates from 3 V up to 32 V.
Which package types are available for the LM358?
The LM358 is offered in DIP‑8, SIP‑9, SOP‑8, MSOP‑8, and TSSOP‑8 packages, with lead‑free or standard plating.
What is the supply voltage range for the LM358?
The LM358 operates from 3 V up to 32 V.
What is the maximum power dissipation for the SOP‑8 package?
The SOP‑8 package can dissipate up to 280 mW.
