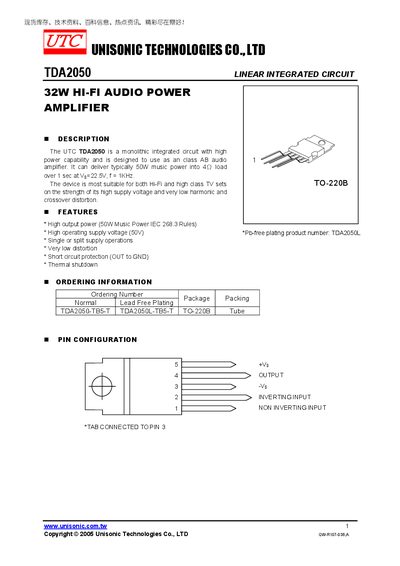

Unisonic TDA2050 Linear Integrated Circuit Datasheet
The TDA2050 is a monolithic linear integrated circuit designed for class‑AB audio amplification, capable of delivering up to 50 W into a 4 Ω load at 22.5 V supply. It features high output power, low distortion, short‑circuit protection, and thermal shutdown, making it suitable for hi‑fi and high‑class TV audio stages.
The document lists absolute maximum ratings, electrical characteristics, pin assignments, and typical application schematics for both split‑supply and single‑supply configurations. Package information (TO‑220B, lead‑free) and ordering numbers are also provided.
UTC TDA2050 specifications
| Maximum Supply Voltage (Vs) | +25 V |
|---|---|
| Maximum Junction Temperature | +125 °C |
| Storage Temperature Range | -40 °C to +150 °C |
Source: Unisonic TDA2050 Linear Integrated Circuit Datasheet
All UTC TDA2050 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the TDA2050?
The maximum supply voltage is +25 V.
What protection features are included?
The device provides short‑circuit protection (output to ground) and thermal shutdown.
