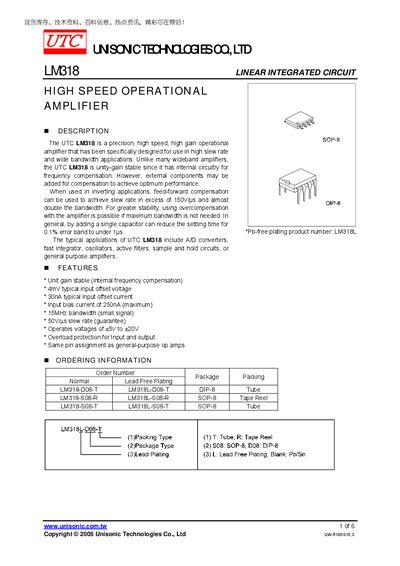

Unisonic LM318 Datasheet
The LM318 is a precision, high‑speed operational amplifier designed for high slew‑rate and wide‑bandwidth applications. It is unity‑gain stable thanks to internal frequency compensation, and external components can be added for further performance tuning.
Key electrical characteristics include a 45 MHz small‑signal bandwidth, 50 V/µs slew rate, ±20 V supply range, 250 nA maximum input bias current, and a 500 mW power dissipation rating. Ordering information and package options (DIP‑8, SOP‑8, tape or tube) are also provided.
UTC LM318 specifications
| Bandwidth (small‑signal) | 45 MHz |
|---|---|
| Slew Rate | 50 V/µs |
| Supply Voltage Range | ±20 V |
| Input Offset Voltage (typical) | 15 mV |
| Input Bias Current (max) | 250 nA |
| Power Dissipation | 500 mW |
Source: Unisonic LM318 Datasheet
All UTC LM318 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical slew rate of the LM318?
The LM318 has a typical slew rate of 50 V/µs.
From: Unisonic LM318 Datasheet
What is the bandwidth of the LM318?
The LM318 provides a small‑signal bandwidth of 45 MHz.
From: Unisonic LM318 Datasheet
Is the UTC LM318 unity‑gain stable?
Yes, it is unit‑gain stable due to internal frequency compensation.
What is the typical slew rate of the UTC LM318?
The guaranteed slew rate is 50 V/µs.
