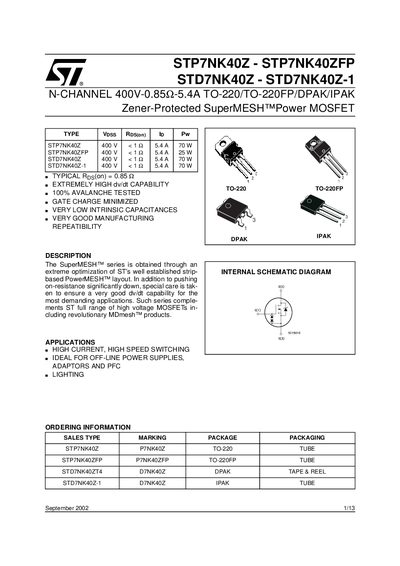

ST STP7NK40Z STP7NK40ZFP STD7NK40Z STD7NK40Z-1 Manual
The STP7NK40Z series are 400 V, 0.85 mΩ typical, 5.4 A N‑channel Power MOSFETs offered in TO‑220, TO‑220FP, DPAK and IPAK packages. The devices feature Zener‑protected gate, high dv/dt capability and avalanche robustness for demanding switching applications.
The datasheet provides absolute maximum ratings, thermal characteristics, electrical parameters, switching performance, safe operating area diagrams and detailed mechanical dimensions for each package type.
STMicroelectronics STD7NK40Z-1 specifications
| Drain‑source voltage (VDS) | 400 V |
|---|---|
| Avalanche energy (EAS) | 130 mJ |
| Package options | TO‑220, TO‑220FP, DPAK, IPAK |
Source: ST STP7NK40Z STP7NK40ZFP STD7NK40Z STD7NK40Z-1 Manual
