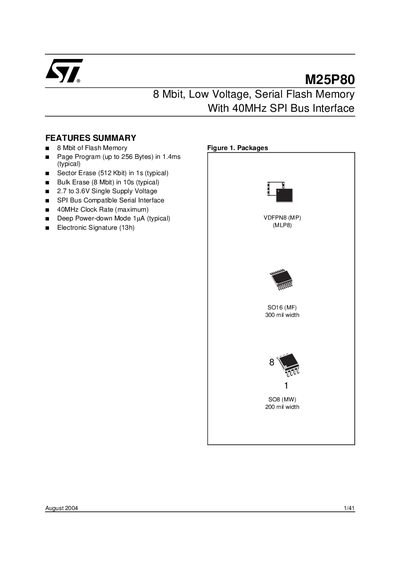

STMicroelectronics M25P80 Serial Flash Memory Datasheet
The M25P80 serial flash memory provides 8 Mbit (1M × 8) storage, organized into 16 sectors of 256 pages each. Each page holds up to 256 bytes, allowing fast page‑program operations. The device operates from a single 2.7 V to 3.6 V supply and communicates via a standard SPI bus up to 40 MHz.
Key features include page programming in as little as 1.4 ms, sector erase in about 1 s, bulk erase in 10 s, deep power‑down mode with ultra‑low current consumption, and an electronic signature for identification. The datasheet details pin configurations, timing diagrams, electrical characteristics, and package dimensions for the VDFPN8, SO8, and SO16 packages.
STMicroelectronics M25P80 specifications
| Memory capacity | 8 Mbit (1M × 8) |
|---|---|
| Supply voltage | 2.7 V to 3.6 V |
| SPI clock rate (max) | 40 MHz |
| Page program time (typical) | 1.4 ms |
| Sector erase time (typical) | 1 s |
| Bulk erase time (typical) | 10 s |
| Deep power‑down current | 1 µA (typical) |
Source: STMicroelectronics M25P80 Serial Flash Memory Datasheet
