Quick Start Guide 32 pages · 2.9 MB · ES

This quick installation guide, distributed by DIALER Seguridad Electrónica SRL in Buenos Aires, describes a typical installation of a Soyal access control system based on the AR-721H controller. It shows two installation modes: the controller configured without a PC connection, and the controller managed with the corresponding software on a Windows XP SP2 PC.

The guide covers RS-485 network cabling rules (semi-ring topology, 120-ohm or UTP cable), connection to the RS-485/RS-232 converter, Node ID and operating mode programming commands, card loading by keypad for modes A, B and C, installation of the 701Server and 701Client applications, user registration in the software, and downloading data to the controllers. This manual is written in Spanish.

Read online

Soyal AR-721H specifications

Power Supply Voltage10‑24 VDC
Power Consumption< 3 W
Low‑Frequency Card125 kHz, read distance 10‑18 cm
High‑Frequency Card13.56 MHz, read distance 3‑8 cm

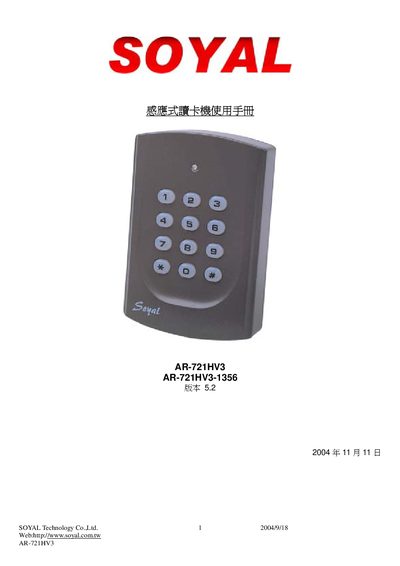

Source: SOYAL AR-721HV3/1356 User Manual
