Soyal AR-327H/AR-727H Access Controller User Manual

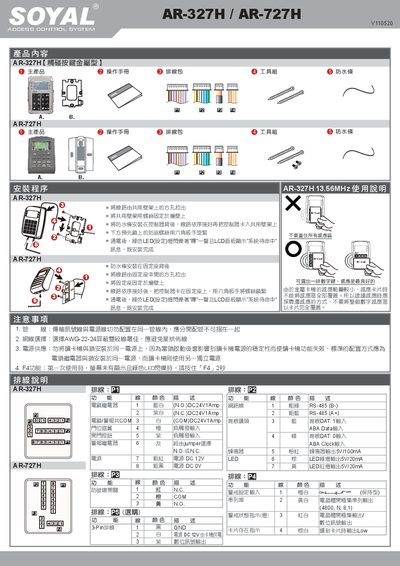

This manual provides step‑by‑step instructions for installing the Soyal AR‑327H/AR‑727H liquid‑crystal display access controller, including mounting, waterproof strip attachment, and power connection. It also details wiring diagrams, LED indicator meanings, and safety precautions.
The document explains how to manage cards, set passwords, configure alarm and digital signal modes, and adjust system parameters such as RS‑485 communication and zone settings. Troubleshooting tips and FAQ sections help resolve common issues during operation. This manual is written in Chinese.
Soyal AR-727H specifications
| Power supply (N.O. contact) | DC 24 V, 1 A |
|---|---|
| Power supply (N.C. contact) | DC 24 V, 1 A |
| LED output voltage | 5 V, 20 mA |
| RS‑485 interface | B‑ and A+ lines |
All Soyal AR-727H documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I install the controller and attach the waterproof strip?
Mount the controller on the wall, fix the waterproof strip behind the controller, connect the wiring in order, then lock the controller into the mounting bracket with a hex key.
How can I add or delete cards in the controller?
Enter the edit mode, select the appropriate option (e.g., "Add Card" or "Delete Card"), input the user address and card ID, then confirm to complete the operation.
