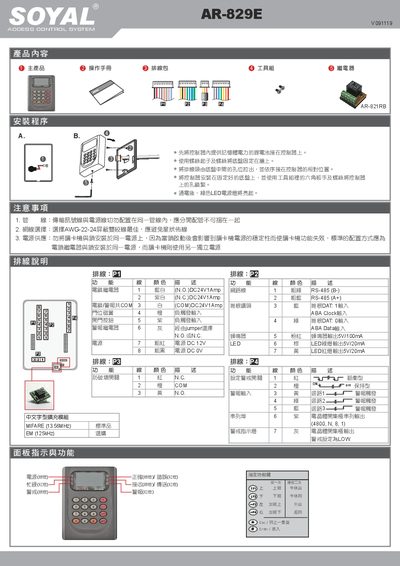

SOYAL AR-829E Access Control System User Manual
This manual explains how to install the AR-829E controller, connect the supplied wiring harness, and power the unit with a 12 V DC battery. It details the placement of the chassis on the wall, connection of relay modules, locks, readers, and alarms, and shows the LED status indicators for power, busy, alarm, and warning states.
The guide also covers software configuration, including entering edit mode, setting administrator, alarm, and access passwords, defining user IDs, and configuring single‑ or multi‑floor access. It describes RS‑485 communication settings, MIFARE and EM card compatibility, and how to adjust language and system parameters via the toolbox. This manual is written in Chinese.
SOYAL AR-829E specifications
| Power Supply (controller) | 12 V DC |
|---|---|
| Communication interface | RS‑485 (A+, B-) |
| Supported card types | MIFARE 13.56 MHz, EM 125 kHz |
| Baud rate | 4800 bps |
All SOYAL AR-829E documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the default administrator password?
The default password is 123456.
How do you enter edit mode?
Press the edit button and input the password (default 123456) within 30 seconds; otherwise the device exits edit mode automatically.
How do I enter edit mode on the AR‑829E?
Press ▶ then type the password (default 123456) followed by #, e.g., ▶ 123456 #.
How can I lock and unlock the controller using the keys?
Press both ▶ keys simultaneously to lock; press them again together to unlock.
