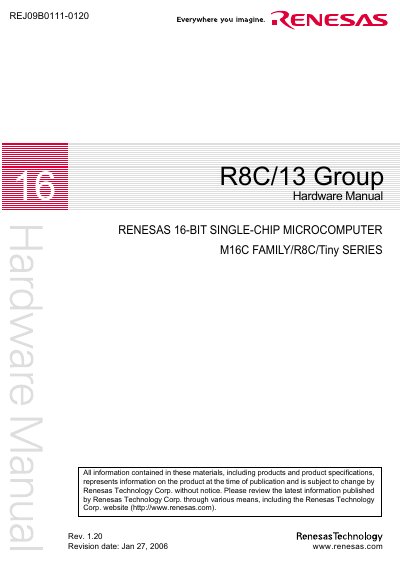

RENESAS R8C/13 Group 16 Rev. 1.20 Revision date: Jan 27 2006 Hardware Manual
This hardware manual gives a comprehensive reference for the Renesas R8C/13 Group 16‑bit single‑chip microcontroller. It covers register diagrams, CPU architecture, clock generation, peripheral functions, and electrical characteristics, helping engineers design and debug circuits.
Safety considerations are highlighted, and users are advised to consult the Renesas website for the most recent information and any errata. The document also includes application notes, programming guidelines, and troubleshooting tips.
Renesas R13 specifications
| Number of basic instructions | 89 |
|---|---|
| Shortest instruction execution time | 50 ns (f(XIN)=20 MHz, Vcc=3.0‑5.5 V) |
| Address space | 1 M bytes |
| Flash memory (program/erase voltage) | Voc = 2.7‑5.5 V |
| Typical power consumption (high‑speed mode) | 9 mA @ Vcc=5.0 V, f(XIN)=20 MHz |
| Operating temperature range | -20 °C to 85 °C (standard), -40 °C to 85 °C (D‑version) |
| Package | 32‑pin plastic molded LQFP (32P6U‑A) |
| A/D converter | 10‑bit, 12 channels |
Source: Renesas R8C/13 Group Datasheet
