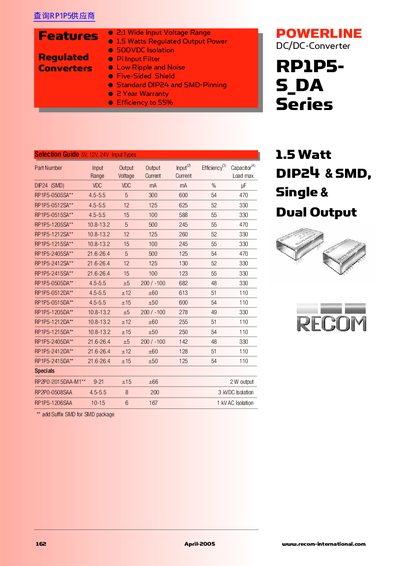

Recom RP1P5-S DA Series Powerline DC/DC Converter Datasheet
This document provides technical specifications for the POWERLINE RP1P5-S DA Series of Powerline DC/DC Converters manufactured by Recom. The series offers a maximum output power of 1.5W per channel with input voltage options including 5V, 12V, and 24V nominal inputs.
Read onlineRecom RP1P5 specifications
| Output Power | 1.5W max. |
|---|---|
| Operating Temperature Range | -25°C to +71°C |
| Isolation Voltage | 500VDC min. |
| Operating Frequency | 20kHz min. / 300kHz typ. |
| Ripple and Noise | 50mVp-p |
Source: Recom RP1P5-S DA Series Powerline DC/DC Converter Datasheet
All Recom RP1P5 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output power of this converter?
The device provides a maximum output power of 1.5W.
From: Recom RP1P5-S DA Series Powerline DC/DC Converter Datasheet
What is the operating temperature range for these converters?
These units operate in temperatures from -25°C to +71°C.
From: Recom RP1P5-S DA Series Powerline DC/DC Converter Datasheet
What input voltage ranges are supported by the RP1P5‑S DA converters?
The converters accept 4.5‑5.5 V for a 5 V nominal input, 10.8‑13.2 V for 12 V nominal, 21.6‑26.4 V for 24 V nominal, and 43.2‑52.8 V for 48 V nominal.
What is the maximum output power of the RP1P5‑S DA series?
The series can deliver up to 1.5 W of output power.
