Microsemi 1N6103-1N6137 1N6139-1N6173 1N6103A-1N6173A 1N6139A-1N6173A

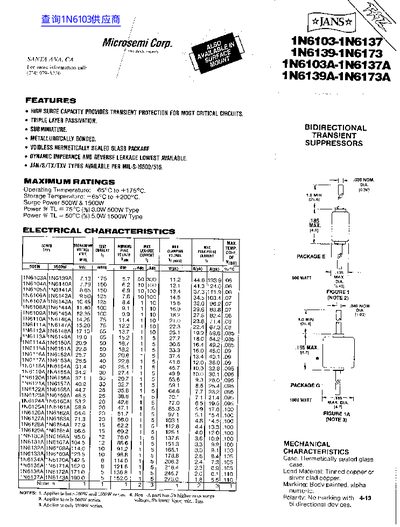

The Microsemi 1N6103‑1N6137 series provides high‑surge capacity transient protection for critical circuits. Features include triple‑layer passivation, sub‑miniature hermetically sealed glass packages, and the lowest available dynamic impedance and reverse leakage.
The datasheet lists maximum ratings such as operating temperature from –65 °C to +175 °C, surge power options of 500 W and 1500 W, and detailed electrical characteristics, mechanical specifications, and derating curves for various pulse widths and ambient temperatures.
Microsemi 1N6103-1N6137 specifications
| Operating Temperature | -65 °C to +175 °C |
|---|---|
| Storage Temperature | -65 °C to +200 °C |
| Surge Power | 500 W / 1500 W |
| Maximum Power Dissipation | 500 W (500 Watt max) |
| Package Type | Hermetically sealed glass |
| Lead Material | Tinned copper or silver‑clad copper |
