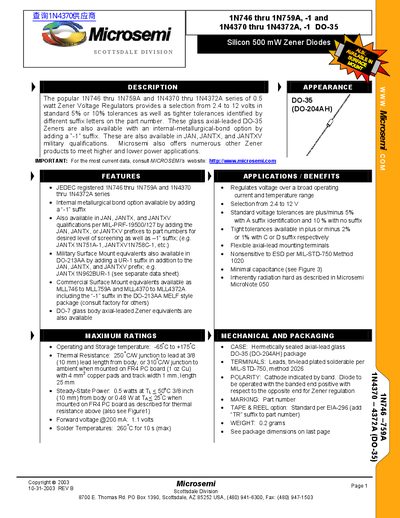

Microsemi 1N746‑1N759A and 1N4370‑1N4372A DO‑35 Zener Diode Data Sheet
The Microsemi 1N746‑1N759A and 1N4370‑1N4372A series are 0.5 W glass axial‑lead Zener diodes in a DO‑35 (DO‑204AH) package. They provide selectable Zener voltages from 2.4 V to 12 V with standard 5 % or 10 % tolerances, and tighter tolerances using suffix letters.
These devices operate over a wide temperature range (‑65 °C to +175 °C) and include options such as internal metallurgical bond (‑1 suffix) and military‑grade screening (JAN, JANTX, JANTXV). Electrical characteristics, mechanical dimensions, and packaging details are provided for design and reliability assessment.
Microsemi 1N759A specifications
| Power rating | 0.5 W |
|---|---|
| Voltage range | 2.4 V – 12 V |
| Voltage tolerance | ±5 % (standard), ±10 % (no suffix), ±2 % (C suffix), ±1 % (D suffix) |
| Operating temperature | -65 °C to +175 °C |
| Thermal resistance | 250 °C·W⁻¹ (junction‑to‑lead) |
| Forward voltage @200 mA | 1.1 V |
| Maximum solder temperature | 260 °C for 10 s |
| Package type | DO‑35 (DO‑204AH) axial‑lead glass |
| Weight | 0.2 g |
Source: Microsemi 1N746‑1N759A and 1N4370‑1N4372A DO‑35 Zener Diode Data Sheet
All Microsemi 1N759A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the power dissipation rating of these Zener diodes?
Each diode is rated for 0.5 W steady‑state power dissipation.
From: Microsemi 1N746‑1N759A and 1N4370‑1N4372A DO‑35 Zener Diode Data Sheet
What temperature range can the diodes operate in?
They operate from –65 °C up to +175 °C.
From: Microsemi 1N746‑1N759A and 1N4370‑1N4372A DO‑35 Zener Diode Data Sheet
What is the power rating of the 1N746‑1N759A Zener diodes?
They are rated for 0.5 W continuous dissipation.
From: Microsemi 1N746 thru 1N759A -1 1N4370 thru 1N4372A -1 DO-35 handbook
What temperature range can these Zener diodes operate in?
They operate from –65 °C up to +175 °C.
From: Microsemi 1N746 thru 1N759A -1 1N4370 thru 1N4372A -1 DO-35 handbook
