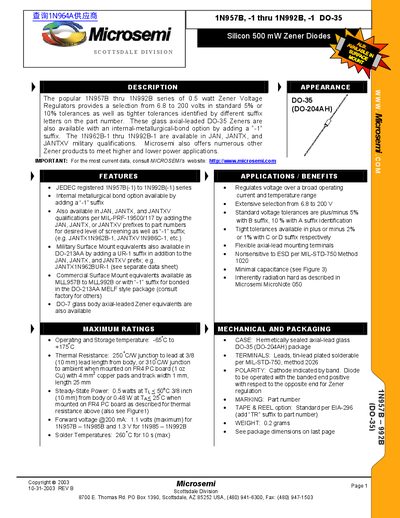

Microsemi 1N957B-1 to 1N992B-1 DO-35 Zener Diode Datasheet
This datasheet covers the 0.5 W silicon Zener diode series 1N957B‑1 through 1N992B‑1 in a DO‑35 (DO‑204AH) axial‑lead glass package. It lists the available voltage range from 6.8 V to 200 V, tolerance options, and the optional internal metallurgical‑bond version indicated by a “‑1” suffix.
Key electrical parameters such as Zener voltage, test current, impedance, reverse leakage and surge ratings are tabulated at 25 °C. Mechanical and packaging information includes dimensions, hermetic sealing, lead finish, and recommended soldering temperatures. Graphs illustrate power dissipation, temperature coefficients and capacitance versus voltage.
Microsemi 1N992B specifications
| Maximum power dissipation | 0.5 W |
|---|---|
| Operating temperature range | -65 °C to +175 °C |
| Zener voltage range | 6.8 V to 200 V |
| Voltage tolerance (B suffix) | ±5 % |
| Package type | Hermetically sealed axial‑lead glass DO‑35 |
Source: Microsemi 1N957B-1 to 1N992B-1 DO-35 Zener Diode Datasheet
All Microsemi 1N992B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum power rating of these Zener diodes?
The diodes are rated for a steady‑state power dissipation of 0.5 W.
From: Microsemi 1N957B-1 to 1N992B-1 DO-35 Zener Diode Datasheet
What temperature range can the diodes operate in?
They can operate from –65 °C up to +175 °C.
From: Microsemi 1N957B-1 to 1N992B-1 DO-35 Zener Diode Datasheet
What temperature range can the diodes operate in?
They can operate from –65 °C up to +175 °C.
From: Microsemi 1N957B -1 thru 1N992B -1 DO35 Data Sheet(1)(1)
Are there military‑qualified versions of these Zener diodes?
Yes, the series is available with JAN, JANTX, and JANTXV military qualifications.
From: Microsemi 1N957B -1 thru 1N992B -1 DO35 Data Sheet(1)(1)
What temperature range can these Zener diodes operate in?
They operate from –65 °C to +175 °C.
From: Microsemi 1N957B-1 to 1N992B-1 DO-35 Zener Diode Datasheet
What package do these Zener diodes use?
They are supplied in a hermetically sealed axial‑lead glass DO‑35 (DO‑204AH) package.
From: Microsemi 1N957B-1 to 1N992B-1 DO-35 Zener Diode Datasheet
