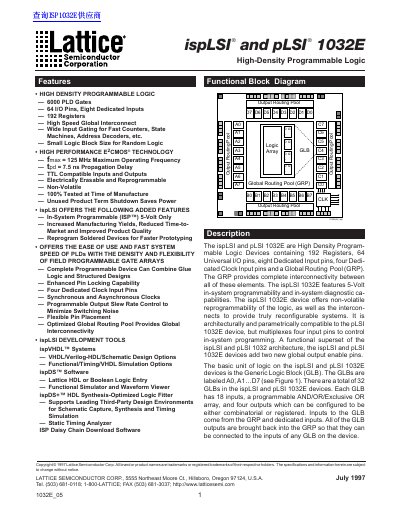

Lattice 1032E High-Density Programmable Logic Datasheet
The ispLSI and pLSI 1032E are high‑density programmable logic devices offering 6000 PLD gates, 64 I/O pins, eight dedicated inputs, and 192 registers. They feature 5‑V in‑system programmability, non‑volatile re‑programmability, and a global routing pool for flexible interconnectivity.
The document provides detailed electrical specifications, absolute maximum ratings, timing parameters, power consumption curves, and pin descriptions. It also outlines development tools and added features such as in‑system programming and diagnostic capabilities.
Lattice 1032E specifications
| PLD Gates | 6000 |
|---|---|
| I/O Pins | 64 |
| Dedicated Input Pins | 8 |
| Registers | 192 |
| Maximum Operating Frequency (fmax) | 125 MHz |
| Propagation Delay (tpd) | 7.5 ns |
| Supply Voltage (VCC) Range | 4.5 V – 5.5 V |
| Output Drive Capability | Source 4 mA, Sink 8 mA |
Source: Lattice 1032E High-Density Programmable Logic Datasheet
All Lattice 1032E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating frequency of the 1032E?
The device can operate up to 125 MHz.
From: Lattice 1032E High-Density Programmable Logic Datasheet
How many I/O pins does the 1032E provide?
It provides 64 universal I/O pins.
From: Lattice 1032E High-Density Programmable Logic Datasheet
What is the maximum operating frequency of the ispLSI 1032E?
The device can operate up to 125 MHz.
How many I/O pins does the ispLSI 1032E provide?
It provides 64 universal I/O pins plus eight dedicated input pins.
