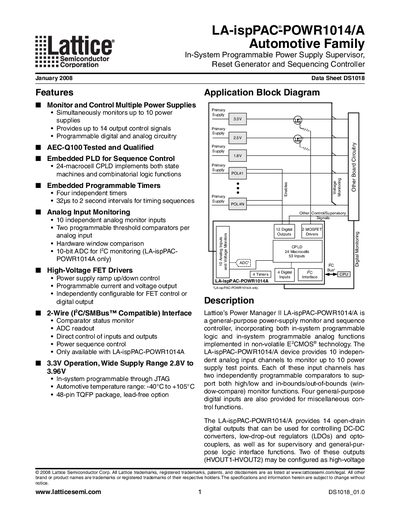

LATTICE SEMICONDUCTOR LA-ispPAC-POWR1014/A Automotive Family In-System Programmable Power Supply Supervisor Reset Generator Sequencing Controller January 2008 Data Sheet DS1018
The LA-ispPAC-POWR1014/A combines programmable logic and analog monitoring to supervise up to ten power supplies and generate reset and sequencing signals. It features a 24‑macrocell CPLD, four independent timers, a 10‑bit ADC, and high‑voltage FET drivers that can output up to 8 V for gate control.
The device operates from a 2.8 V to 3.96 V core supply, supports I²C/SMBus communication, and is qualified for automotive temperature ranges from –40 °C to +105 °C. Pin‑out includes 10 analog monitor inputs, 4 digital inputs, and 14 open‑drain digital outputs, all configurable via JTAG or the on‑chip CPLD.
Lattice ispPAC-POWR1014 specifications
| Analog monitor inputs | 10 |
|---|---|
| Digital outputs (open‑drain) | 14 |
| Timers | 4 independent timers |
| ADC resolution | 10 bits |
| Core supply voltage range | 2.8 V to 3.96 V |
| Operating temperature (automotive) | -40 °C to +105 °C |
| High‑voltage driver output | up to 8 V |
