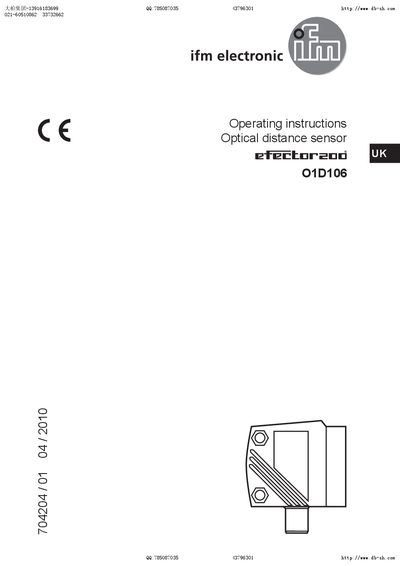

This manual provides detailed information on the functions, features and usage of the optical distance sensor O1D106.
This manual covers safety instructions, installation conditions, electrical connection, and mounting accessories for the ifm O1D106 optical distance sensor. It explains the sensor’s functions, including hysteresis, window, and analogue output modes, and describes the 4‑digit alphanumeric display and LED indicators.
Detailed parameter settings, factory defaults, and scaling options are provided, along with maintenance and repair guidance. The document also includes a scale drawing and wiring diagram for proper integration into the user's system.
| Measuring range | 1–75 m |
|---|---|
| Laser class | Class 2 |
| Laser power | 4.1 mW |
| Wavelength | 650 nm |
| Pulse width | 1.3 ns |
| Number of outputs | 2 |
| Display type | 4‑digit alphanumeric |
The sensor measures distances from 1 m up to 75 m on the reflector.
It is a Class 2 laser with a maximum power of 4.1 mW at 650 nm wavelength; do not stare into the beam and avoid exposure.
The unit can generate two output signals, which can be configured for hysteresis, window, or analogue functions.
It features a 4‑digit alphanumeric display with LED indicators for power and status.
