Key facts
- Brand
- Hayward
- Model
- PL-PS-16-CUL
- Industry
- Industrial
- Documents
- 5
- Languages
- FR · EN
- Last added
- 2012-07-11
Start here

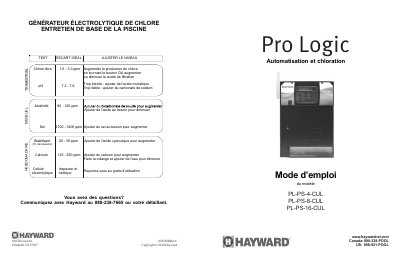

HAYWARD Mode d emploi du modèle PL-PS-4-CUL PL-PS-8-CUL PL-PS-16-CUL
This document is the user guide for the Hayward Pro Logic console (models PL-PS-4-CUL, PL-PS-8-CUL, and PL-PS-16-CUL). It explains how to operate the system in both manual and automatic modes to control pool pumps, lights, heaters, valves, and an electrolytic chlorine generator.
The guide details the programming menu structure for setting timers, temperature limits, and chlorine production rates. It also provides instructions for routine maintenance, winterization, spring startup, and diagnostic procedures. This manual is written in French.
Hayward PL-PS-16-CUL specifications
| Controlled Equipment (PS-4) | up to 4 high voltage pieces of equipment |
|---|---|
| Controlled Equipment (PS-8/PS-16) | up to 8 or 16 high voltage pieces of equipment |
| Conventional Heaters | 2 conventional heaters plus a solar heater |
Source: Hayward Pro Logic Operation Manual for models PL-PS-4-CUL PL-PS-8-CUL PL-PS-16-CUL
All Hayward PL-PS-16-CUL documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the recommended free chlorine level for the pool water?
The free chlorine level should be maintained between 1.0 and 3.0 ppm.
From: HAYWARD Mode d emploi du modèle PL-PS-4-CUL PL-PS-8-CUL PL-PS-16-CUL
What is the recommended range for alkalinity in the pool water?
The alkalinity should be kept between 80 and 120 ppm.
From: HAYWARD Mode d emploi du modèle PL-PS-4-CUL PL-PS-8-CUL PL-PS-16-CUL
What is the warranty period for Hayward Pro Logic automation products in Canada and the US?
Hayward/Goldline provides a three-year limited warranty for Pro Logic automation products installed on private residential pools in Canada and the United States.
From: HAYWARD Manual d installation du modèle PL-PS-4-CUL PL-PS-8-CUL PL-PS-16-CUL(1)
What is the minimum wire gauge required to connect the local grounding grid in the pool or spa area?
You must use an insulated or bare copper conductor with a minimum size of 8 AWG US or 6 AWG Canada.
From: HAYWARD Manual d installation du modèle PL-PS-4-CUL PL-PS-8-CUL PL-PS-16-CUL(1)
What safety precaution should be taken during installation?
Disconnect all AC power during installation.
From: Hayward Pro Logic Operation Manual for models PL-PS-4-CUL PL-PS-8-CUL PL-PS-16-CUL
What happens if the product is installed on a pool larger than its rating?
It is considered improper installation and may void the warranty.
From: Hayward Pro Logic Operation Manual for models PL-PS-4-CUL PL-PS-8-CUL PL-PS-16-CUL
