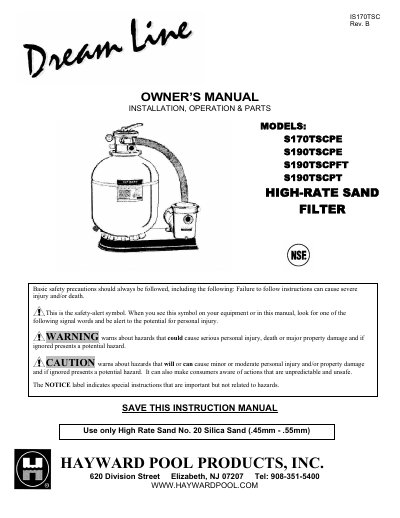

HAYWARD S170TSCPE Manual(1)
This document is the Owner's Manual for the Hayward IS170TSC high-rate sand filter. It covers essential safety precautions, including warnings about suction entrapment hazards and electrical grounding, as well as instructions for using only genuine Hayward replacement parts and specific high-rate sand media.
The manual details the installation process, requiring the filter to be placed on a level concrete slab no more than 6 feet above the pool water level. It outlines steps for loading the filter sand media, assembling the control valve, and making plumbing and electrical connections. Operation instructions explain the automatic filtration cycle and the backwash process for cleaning the filter.
Hayward S170TSCPE specifications
| Recommended Sand Type | High Rate Sand No. 20 Silica Sand (.45mm - .55mm) |
|---|---|
| Maximum System Pressure | 40 PSI |
| Maximum Installation Height | 6 feet above pool water level |
| Cover Inspection Interval | Every ten years |
Source: HAYWARD S170TSCPE Manual(1)
All Hayward S170TSCPE documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of sand should be used for this filter?
You must use only High Rate Sand No. 20 Silica Sand with a grain size of .45mm to .55mm.
What is the maximum pressure for the circulation system?
The system must never be operated or tested at more than 40 PSI.
What type of sand must be used in this filter?
You must use High Rate Sand No. 20 Silica Sand with a grain size of .45mm to .55mm.
From: Hayward S170TSCPE High-Rate Sand Filter Owner's Manual
How high above the pool water level should the filter be installed?
The filter system should be installed no more than 6 feet above the pool water level.
From: Hayward S170TSCPE High-Rate Sand Filter Owner's Manual
