Key facts
- Brand
- Haier
- Model
- XQG80-B1286
- Category
- Washing Machines
- Industry
- Appliances
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-02-24
Start here

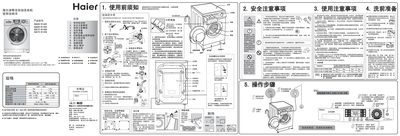

Haier XQG80-B1486 XQG80-B1286 XQG75-B1486 XQG75-B1286 Washing Machine User Manual
The manual explains how to safely install and connect the water inlet and drain pipes, outlines safety precautions, and describes the control panel functions and program settings for the Haier front‑load washing machines. It also provides guidance on proper use, cleaning, and routine maintenance to ensure reliable operation.
Additional sections cover fault diagnosis, warranty information, and technical specifications such as spin speed, water pressure range, and energy‑efficiency rating. Users are advised to follow the illustrated steps and warnings to avoid leaks, electrical hazards, and damage to the appliance. This manual is written in Chinese.
Haier XQG80-B1286 specifications
| Rated Spin Capacity | 8 kg / 7.5 kg |
|---|---|
| Energy Efficiency Class | Level 1 |
| Water Inlet Pressure | 0.03‑1.0 MPa |
| Noise Level (Spin) | 53 dB(A) |
Source: Haier XQG80-B1486 XQG80-B1286 XQG75-B1486 XQG75-B1286 Washing Machine User Manual
All Haier XQG80-B1286 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How should the water inlet pipe be connected?
Use the new water inlet pipe supplied with the machine and do not reuse any other pipe; ensure the connection is tight and leak‑free.
From: Haier XQG80-B1486 XQG80-B1286 XQG75-B1486 XQG75-B1286 Washing Machine User Manual
What water pressure range is required for proper operation?
The machine is designed for a water inlet pressure between 0.03 MPa and 1.0 MPa.
From: Haier XQG80-B1486 XQG80-B1286 XQG75-B1486 XQG75-B1286 Washing Machine User Manual
How do I cancel a reservation on the washing machine?
Press the power button to turn the machine off and then restart it; this cancels the reservation.
From: Haier XQG80-B1286 / XQG70-B1286 Washing Machine User Manual
How can I add laundry during a wash cycle?
Ensure the water level is below the observation window, water temperature is below 50 °C, and the inner tub is not rotating; then remove the drain pipe, lower it until no water flows, re‑install the pipe, and open the door via the filter door pull‑rod.
From: Haier XQG80-B1286 / XQG70-B1286 Washing Machine User Manual
