Start here

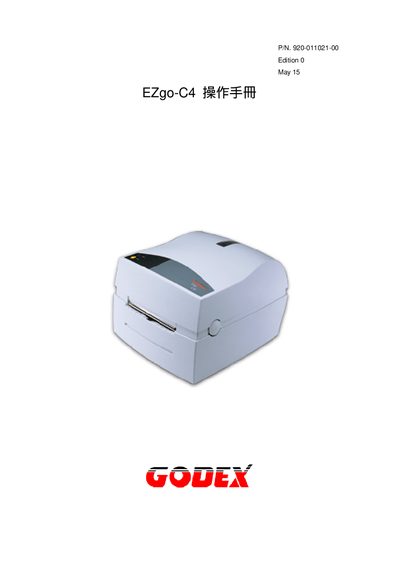

GODEX EZgo-C4 Manual
This manual covers the EZgo C4 label printer, including safety warnings, FCC, DOC and EU compliance statements, and general usage guidance. It explains the device's purpose, power options, and maintenance procedures.
The document details the parallel Centronics (36‑pin) and RS‑232 (DB‑9) interfaces, pin‑out tables, supported baud rates, memory configuration (1 MB flash, 256 KB SRAM), and power requirements (110‑220 V AC, +5 V DC up to 500 mA). Installation, wiring, and troubleshooting information are also provided. This manual is written in Chinese.
GODEK EZGO-C4 specifications
| Input Voltage | 110 V – 220 V AC |
|---|---|
| Flash Memory | 1 MB |
| SRAM | 256 KB |
| Parallel Interface Connector | 36‑pin female Centronics |
| RS‑232 Connector | DB‑9 female |
| DC Output | +5 V, 500 mA max |
Source: GODEX EZgo-C4 Manual
All GODEK EZGO-C4 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- GODEX EZgo-C4 Manual 34 p
Instruction set, parameters and examples for configuring or programming the device.
Questions answered in these manuals
What type of parallel interface does the EZgo C4 use?
It uses a 36‑pin female Centronics parallel interface.
From: GODEX EZgo-C4 Manual
