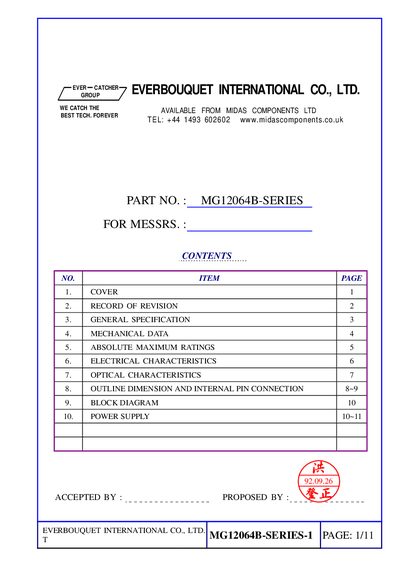

Everbouquet MG12064B-SERIES Handbook
This handbook details the specifications of the Everbouquet MG12064B-SERIES LCD module, covering general specifications, mechanical data, absolute maximum ratings, electrical characteristics, and optical characteristics. It is intended for designers and engineers who need precise data for integration and verification.
Key information includes a 128 × 64 dot resolution, active area dimensions of 71.0 mm × 39.0 mm, typical power supply voltage of 5.0 V, viewing angles of 30°–40°, and LED backlight options. The document also provides block diagrams and recommended resistor values for proper operation.
EVERBOUQUET MG12064B-SERIES specifications
| Resolution | 128 W × 64 H dots |
|---|---|
| Active area | 71.0 mm × 39.0 mm |
| Dot pitch | 0.48 mm × 0.48 mm |
| Input voltage (Vin) | 0.7 Vpp |
| Contrast ratio | 10 |
| Backlight type | LED |
| Maximum operating temperature | 70 °C |
All EVERBOUQUET MG12064B-SERIES documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the dot resolution of the MG12064B‑SERIES LCD?
The LCD has a resolution of 128 × 64 dots.
What is the maximum ambient temperature the module can operate at?
The module can operate up to 70 °C ambient temperature.
What is the operating voltage for the LCD logic circuit?
The LCD logic circuit operates at a supply voltage of 5.0 V ± 0.25 V.
What does pin 1 do on the module connector?
Pin 1 is VSS, which provides the ground connection.
