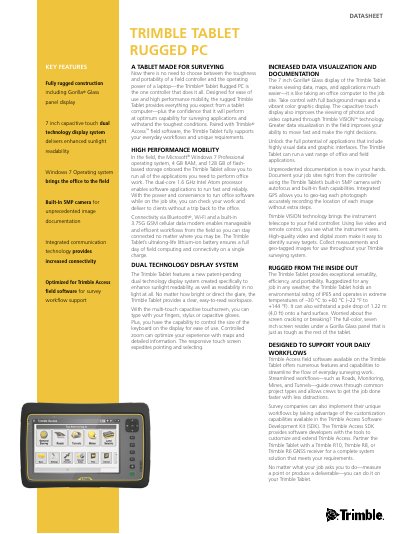

The Trimble Tablet Rugged PC datasheet details its rugged design, dual‑technology display, Intel Atom processor, 4 GB RAM, 128 GB SSD and extensive…
The Trimble Tablet Rugged PC is a 7‑inch tablet built for surveying, combining the toughness of a field controller with the performance of a laptop. It runs Microsoft Windows 7 Professional, offers 4 GB DDR3 RAM, a 1.6 GHz Intel Atom N2600 dual‑core processor, 128 GB SSD storage, and a dual‑technology Gorilla® Glass display that remains readable in bright sunlight or total darkness.
The device meets demanding environmental standards with an IP65 rating, operation from –30 °C to +60 °C, MIL‑STD‑810G drop and vibration tests, and optional extended‑life batteries. Standard accessories include a stylus, wrist strap, and vehicle mounts, while optional accessories add GPS antennas, external keyboards, and rugged cases.
| Processor | 1.6 GHz Intel Atom N2600 dual‑core |
|---|---|
| Memory | 4 GB DDR3 DRAM |
| Storage | 128 GB SSD |
| Display | 7 in, 1024 × 600 hybrid reflective/transmissive |
| Standard Battery | 2 × 7.5 V 3000 mAh (22 Wh) |
| Extended Battery | 2 × 7.5 V 6000 mAh (45 Wh) |
| I/O Ports | 3.5 mm audio, 2 × USB Host, HDMI, docking station I/O |
| Wireless | Bluetooth 4.0, Wi‑Fi b/g/n, Penta‑Band GSM 3.75G |
| Camera | 5 MP with LED flash, autofocus |
| GPS Accuracy | 2–4 m with WAAS/SBAS correction |
| Operating Temperature | –30 °C to +60 °C |
| Weight (standard battery) | 1.2 kg (2.6 lb) |
| Dimensions | 246 mm × 160 mm × 40 mm |
It runs Microsoft Windows 7 Professional.
A standard battery with two 7.5 V 3000 mAh cells (22 Wh) and an extended battery with two 7.5 V 6000 mAh cells (45 Wh) are offered.
It uses a 1.6 GHz Intel Atom N2600 dual‑core processor.
