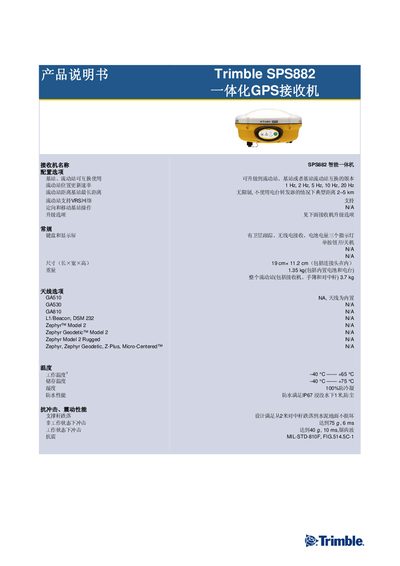

This document provides information about the configuration options, basic features, and technical specifications of the Trimble SPS882 Integrated GPS Receiver, including the flow station position update rate, maximum distance from the base station, and support for VRS networks.
The SPS882 is an integrated GPS receiver that can function as a base station or rover. It offers selectable position update rates from 1 Hz to 20 Hz, built‑in antenna, and supports multiple GNSS constellations with up to 220 channels. Physical dimensions are 19 cm × 11.2 cm and it weighs 1.35 kg including the internal battery and radio. The device is rated IP67 for water ingress protection and meets MIL‑STD‑810F shock and vibration standards.
Technical details include a 7.2 V, 7800 mAh rechargeable lithium battery, Ethernet Power‑over‑Ethernet (PoE) capability, various communication ports (Lemo serial, RS‑232, 1PPS, Ethernet, Bluetooth), and certifications such as FCC Class B, CE, RoHS, and WEEE. The manual also describes upgrade options for base‑station, rover, or combined configurations and provides information on supported correction services (RTK, VRS, OmniSTAR). This manual is written in Chinese.
| Position update rate | 1‑20 Hz selectable |
|---|---|
| Operating temperature | -40 °C to +75 °C |
| Waterproof rating | IP67 |
| Shock resistance | 75 g, 6 ms |
| Vibration resistance | 40 g, 10 ms |
| Supported GNSS channels | 220 channels L1C/A, L1/L2C |
| Battery | 7.2 V, 7800 mAh rechargeable Li‑ion |
| Certifications | FCC Class B, CE, RoHS, WEEE |
The device operates from –40 °C up to +75 °C.
It supports 220 GNSS channels, including L1C/A and L1/L2C.
The receiver is rated IP67 for water ingress protection.
It uses a built‑in 7.2 V rechargeable lithium battery with a capacity of 7800 mAh.
