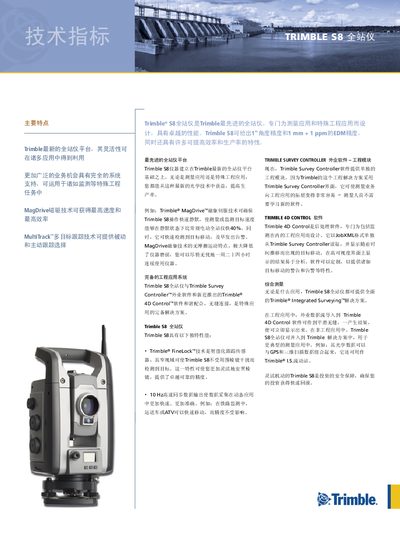

Trimble S8 is an advanced total station platform with the latest optical technology and a complete solution for special engineering applications. It features MagDrive magnetic drive servo technology for fast and silent operation, resulting in increased productivity. With Trimble Survey Controller and Trimble 4D Control software, it offers seamless connectivity and high-precision measurement and monitoring.
The Trimble S8 total station is built on Trimble's latest platform and offers advanced technologies such as MagDrive magnetic drive, FineLock intelligent tracking sensor, and MultiTrack multi‑target tracking. These features enable fast, silent operation and reliable target detection in both standard surveying and special engineering tasks.
The instrument integrates with Trimble Survey Controller field software and the Trimble 4D Control post‑processing suite, providing a seamless workflow from data capture to analysis. Key specifications include 1 mm + 1 ppm EDM accuracy, IP55 dust‑ and water‑proof rating, operating temperature from –20 °C to +50 °C, and a rotation speed of 115 °/s. This manual is written in Chinese.
| EDM accuracy | 1 mm + 1 ppm |
|---|---|
| Operating temperature | -20 °C to +50 °C |
| Ingress protection | IP55 |
| Rotation speed | 115 °/s |
| Laser diode wavelength | 660 nm |
| Measurement range (passive prism) | 20 m – 700 m |
The instrument operates from –20 °C to +50 °C.
It delivers an EDM accuracy of 1 mm + 1 ppm.
The S8 is rated IP55 for dust and water resistance.
The servo rotation speed is 115 degrees per second.
