The Juno SC handheld receiver is a rugged, handheld computing device with a host of powerful features. With camera, cellular data transfer and fast GPS positioning to 2-5 meters accuracy, the Juno SC is an affordable solution to improve productivity across your entire mobile work force.
The Juno SC handheld receiver is a compact, durable field computer with integrated 3.5G HSDPA modem, Bluetooth, Wi‑Fi, a 3‑megapixel camera, and a high‑sensitivity GPS/SBAS receiver. It runs Windows Mobile 6.1 with Office Mobile and other productivity tools, allowing seamless data exchange between the field and office.

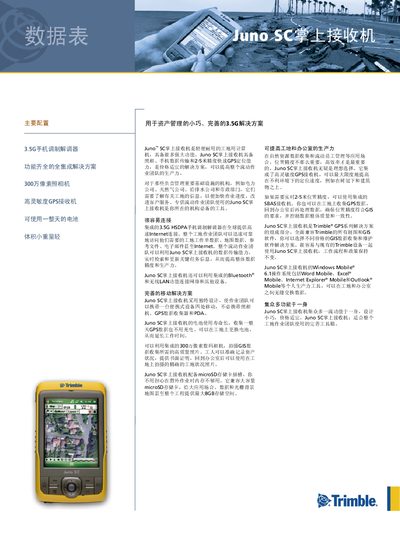

The manual details the standard configuration, optional accessories, technical specifications, and software options. It also includes contact information for Trimble offices worldwide and regulatory notices. This manual is written in Chinese.
| Dimensions | 12.9 cm × 7.4 cm × 3.0 cm |
|---|---|
| Weight | 0.24 kg (including battery) |
| Processor | 533 MHz Samsung processor |
| Memory | 128 MB RAM, 128 MB flash |
| Battery Capacity | 2600 mAh Li‑ion |
| Battery Life (GPS & backlight) | 8 hours |
| Operating Temperature | 0 °C to +60 °C |
| GPS Accuracy | 2‑5 m after differential correction (real‑time or post‑processed) |
| First Fix Time | 0.30 seconds (typical) |
It runs Windows Mobile 6.1 with Office Mobile, Word Mobile, Excel Mobile, Internet Explorer Mobile, and Outlook Mobile.
The battery provides about 8 hours of operation when GPS and the backlight are active.
After differential correction, the receiver achieves 2‑5 meter accuracy, either in real‑time or post‑processed mode.
Yes, it includes integrated Bluetooth v2.0 and 802.11b/g wireless LAN.
