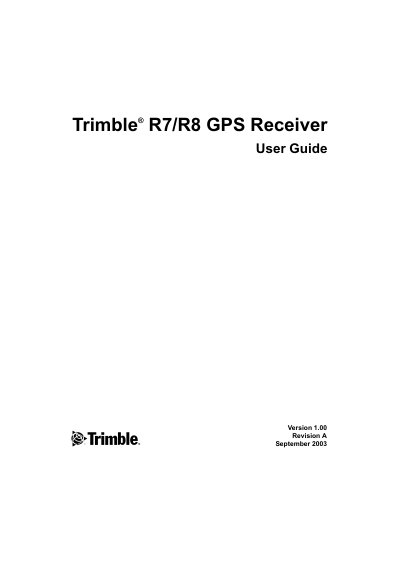

The Trimble R7/R8 GPS Receiver User Manual provides setup, operation, configuration, and technical specifications for the device.
This user manual covers all aspects of the Trimble R7/R8 GPS Receiver, including hardware overview, safety information, and warranty details. It guides users through installation, configuration, data transfer, and troubleshooting for both the R7 and R8 models.
The guide also contains detailed specifications for physical dimensions, battery performance, operating conditions, and positioning accuracy, as well as instructions for using the built‑in Bluetooth radio, external antennas, and software utilities such as GPS Configurator and Configuration Toolbox.
| Dimensions (W x H x L) | 13.5 cm x 8.5 cm x 24 cm |
|---|---|
| Weight (with 2 batteries) | 1.4 kg (3.0 lb) |
| Battery life (20 °C) | RTK with internal radio: 3.5 h; No internal radio: 5 h |
| Power input | 11–28 V DC |
| Operating temperature | –40 °C to +65 °C |
| Storage temperature | –40 °C to +80 °C |
| Humidity rating | 100 % condensing, unit fully sealed |
| Casing protection | Dust‑proof, shock‑ and vibration‑resistant |
With the internal radio enabled, the battery lasts about 3.5 hours; without the internal radio it lasts about 5 hours.
The receiver can operate from –40 °C to +65 °C.
The receiver measures 13.5 cm W × 8.5 cm H × 24 cm L and weighs 1.4 kg with two batteries installed.
