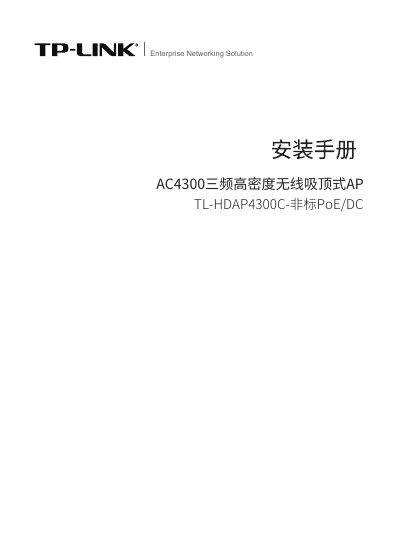

The TP‑LINK TL‑HDAP4300C‑Nonstandard PoE/DC ceiling wireless AP user manual provides product overview, installation preparation, mounting steps, and…
This manual introduces the TL‑HDAP4300C‑Nonstandard PoE/DC ceiling wireless access point, a three‑radio AP (1 × 2.4 GHz + 2 × 5 GHz) designed for high‑density environments such as hotels, conference rooms, and classrooms. It explains the device’s appearance, indicator LEDs, and supported power options (DC adapter or Passive PoE).
The guide details the required tools and accessories, safety warnings, and step‑by‑step installation procedures, including ceiling mounting and cable connections. It also covers how to access the web management interface in both FAT‑AP and FIT‑AP modes, with login URLs and credential requirements. This manual is written in Chinese.
| Radio Bands | 3 radios (1×2.4 GHz + 2×5 GHz) |
|---|---|
| LAN1 Port | 1 PoE power port |
| LAN2 Port | 1 standard LAN port |
It provides three radios: one 2.4 GHz and two 5 GHz.
